Need Help or recommendation #112090
07/20/07 12:57 AM
07/20/07 12:57 AM
Joined: May 2007
Posts: 2
K
KennyD Offline OP
stranger
KennyD  Offline OP
stranger
K

Joined: May 2007
Posts: 2
Hello,

First I must say that I am a complete beginner... I just purchased a P18.2 and everything seems to be ok until I read the owners manual. I get the section regarding the diamond wire tension and the seizing wires. Something isn't right. I go outside to the boat and notice that the tension on the diamond wires is far too tight and I then notice that the seizing wires are not installed.

So, here I am with a boat that needs some fixing before I take it out and I need help with the fix.

Here are my issues:

A) No seizing wires. Can somebody recommend and alternative?

B) Attaching seizing wires to spreader... How is it done?

Would any of you prindle or nacra owners be kind enough to post an image of your diamond wire/speader/seizing wire setup?


Thank you

-- Have You Seen This? --
Re: Need Help or recommendation [Re: KennyD] #112091
07/20/07 01:49 AM
07/20/07 01:49 AM
Joined: Oct 2006
Posts: 902
Norman,OK
gree2056 Offline
old hand
gree2056  Offline
old hand

Joined: Oct 2006
Posts: 902
Norman,OK
I am not even sure what siezing wires are...so I can't help much. Also I am not sure what kinda of tension that boat needs.


Once you go cat you never go back! Nacra 5.2 (Elsies)#1499, running an inter17 spin!
Re: Need Help or recommendation [Re: KennyD] #112092
07/20/07 06:29 AM
07/20/07 06:29 AM
Joined: Mar 2002
Posts: 3,355
Key Largo, FL and Put-in-Bay, ...
RickWhite Offline

Carpal Tunnel
RickWhite  Offline

Carpal Tunnel

Joined: Mar 2002
Posts: 3,355
Key Largo, FL and Put-in-Bay, ...
Forget the manual.., it is wrong.
The wires should be tight to induce prebend. The manual was obviously written in the 1800s.
Seizing wire is simply used to insure the wire does not pop out of the slots in the spreaders. With tight diamond wires, that is not likely to happen anyway, but wire is still a good idea.
Also, something should cover the tips of the spreaders -- tape or something like it.
Good luck and have fun,
Rick


Rick White
Catsailor Magazine & OnLineMarineStore.com
www.onlinemarinestore.com
Re: Need Help or recommendation [Re: KennyD] #112093
07/20/07 08:28 AM
07/20/07 08:28 AM
Joined: Aug 2005
Posts: 2,921
Michigan
PTP Offline
Carpal Tunnel
PTP  Offline
Carpal Tunnel

Joined: Aug 2005
Posts: 2,921
Michigan
You can get some of the seizing wire at West Marine/Boat US- look in the anchor department. Don't give the tension another minute worth of thought provided they are tight (not flopping around)... that is much more complicated than you need to deal with.
All you do is wrap the wire around the diamond wire then spreader, back and forth. Just as if you were taping them but using wire instead.

Last edited by PTP; 07/20/07 08:30 AM.
Re: Need Help or recommendation [Re: KennyD] #112094
07/20/07 09:56 AM
07/20/07 09:56 AM
Joined: Nov 2006
Posts: 30
Lake Norman, NC
D
Doug_P182_LKN Offline
newbie
Doug_P182_LKN  Offline
newbie
D

Joined: Nov 2006
Posts: 30
Lake Norman, NC
Feel free to send me an e-mail with any questions you might have. I've been sailing an 18.2 for ten years now. Some recommendations:

1.) When you rig the forestay, ring and jib halyard - get it right! Test it BEFORE stepping the mast. The typical mistake is to have the halyard snap clips on the wrong side of the forestay eye and you can't hoist the sail. After the mast is stepped is a sucky time to find that out.

2.) Buy the tiller connection kit and stiffening kit from Murrays. A vast improvement and takes out any slop in your helm.

3.) Ignore the manual on the diamond wire tension. Tight man! Tight! If they are loose, you risk breaking the mast. Mine have practically no play in them at all. Wrap the siezing wire around the diamond wires and spreaders to keep them in place, cover them with the rubber boots, and then wrap it up with tape to protect the sails from chaffing against them.

4.) If you don't intend to get picky race-wise, consider not using the 4-way jib system. It just takes up space along the tramp and you may never touch it.

5.) On the 18.2 you should be forward - FORWARD! There is mucho buoyancy up front so in moderate winds, the crew is practically on the forwrad crossbar. If you're hanging back on the aft crossbar, the boat's not balanced right.

6.) Practice lowering that mainsail. You point into the wind, hoist up on the halyard, push the mast rotator over to get the hook out of the way and then drop the sail. Don't look like a tard, wondering why your main won't drop. <img src="http://www.catsailor.com/forums/images/graemlins/grin.gif" alt="" />

7.) The stock downhaul system sucks and gives you no control. Consider investing in the 8:1 here on the Catsailor Online Store.

8.) Make sure you get your tension right on your rudder bolts so that you can raise and lower the rudders with the ropes. It's not as efficient as the Hobie system and it may take some trial and error to get the right balance between having them locked in place and popping up prematurely and you not having the arm strength to disengauge them (and also risk them breaking if you hit something and they don't pop up. When I trailer with the rudders on and up, I don't trust the v in the gudgeon to hold them in place. I wrap the rope around the gudgeon and then use Velcro cable tie-wraps to hold them in place. It's enough to ensure that no bump will EVER have the rudder swing down and chip on the road below.

7.) The rotating centerboards is one of the very best features on this boat! Learn to raise the windward one up into the hull when you're flying it. It's quick and easy. When you're sailing in shallow water with the boards down, don't sit directly over the centerboard trunks. When the rotate, the corner tip extends about 3 inches above the deck surface and if your "family jewels" are in the exact perfect spot.... <img src="http://www.catsailor.com/forums/images/graemlins/shocked.gif" alt="" />

8.) After your first sail, go back and re-tighten the tramp. You'll be shocked as to how much more tightening you'll have to do.

9.) Spray plenty of Sail Lube on the bolt of your main.

10.) The 18.2 is a fast, bt forgiving and fairly easy cat to sail. I've actually soloed on mine many times. ENJOY your new toy!

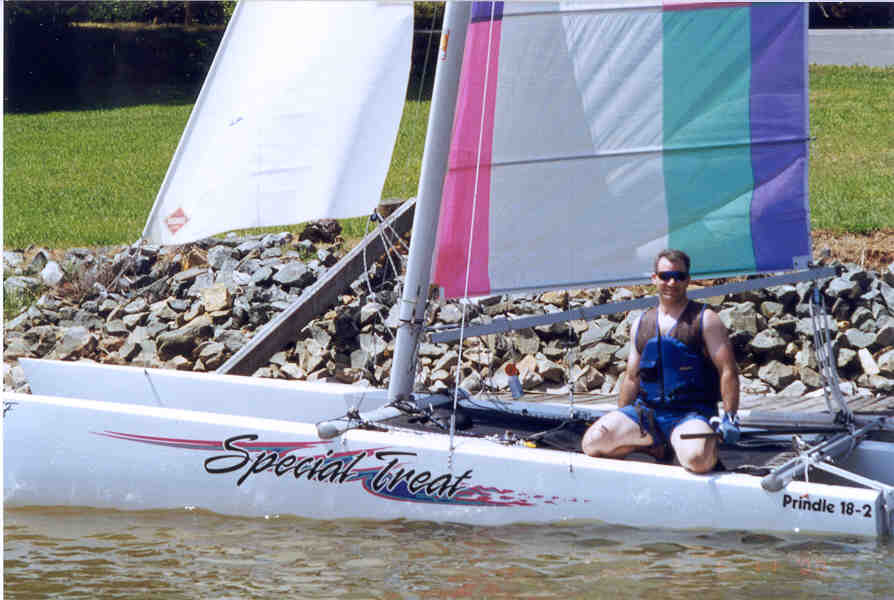

[Linked Image]
Doug, #590, Lake Norman, NC

Attached Files
Last edited by Doug_P182_LKN; 07/20/07 09:58 AM.

Doug Bernstein
Prindle 18.2 'Special Treat' #590
Lake Norman, NC
